Nsshoeu/Ntswoeu 3G1.5mm² Heavy Rubber Hose Cable Ad 15.0mm Nominal Voltage Uo/U 600V/1000V

Nsshoeu/Ntswoeu 3G1.5mm² Heavy Rubber Hose Cable Ad 15.0mm Nominal Voltage Uo/U 600V/1000V
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • Nsshoeu/Ntswoeu

  • REPS

Previous:
Next:
NSSHOEU Heavy Duty Cable Flexible Cable Rubber Cable Mining Cable NTSWOEU
Product Description
Contruction
Dimensions and Weight

Applications


These cables are used for connection of mobile equipment and machines under very high  mechanical loads in dry and damp areas, outdoors and in explosion hazard areas, particularly in  mining and at quarries and building sites.

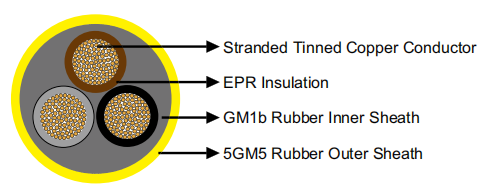

Contruction

微信图片_20251114105606_131_118

Conductors: Flexible stranded copper conductor, class 5 according to DIN VDE 0295.


Insulation: Rubber type 3GI3.


Inner Sheath: Rubber type GM1b.


Outer Sheath: Chlorinated rubber type 5GM5, abrasion and tear resistant, oil resistant and flame  retardant (for 0.6/1kV). Chlorinated rubber type 5GM3, oil resistant and flame retardant (for 1.8/3kV,  3.6/6kV).

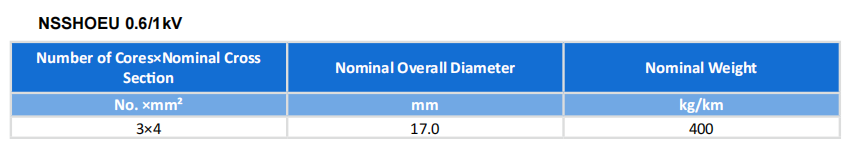

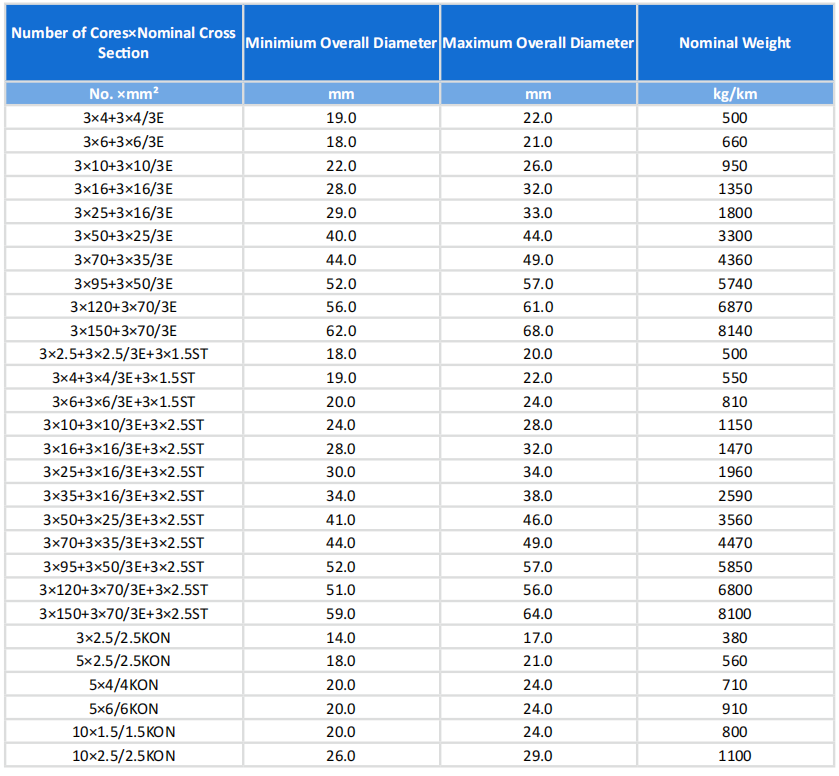

Dimensions and Weight

微信图片_20251114105615_132_118

微信图片_20251114103807_130_118
