Product Description
These cables are used for the connection of electrical operating equipment inindustrial water, notably for submersible pumps.3-core cables without earth cores are used where theascending pipe serves as earth conductor.
Technical Data
Standards
VDE 0250 Part 812
VDE 0250 Part 813

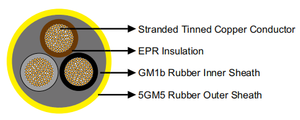

Construction
Conductors:
Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.
Insulation:
Heat resistant EPR.
InnerSheath:
Rubbertype GM1b.
Outer Sheath:
Chlorinated rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant (for 0.6/1kV).
Chlorinated rubber type 5GM3, oil resistant and flame retardant (for 1.8/3kV, 3.6/6kV).
Dimensions
| No. of Cores x Cross Section | Insulation thickness | Inner Sheath thickness | Outer sheath thickness | Minimum outer diameter | Maximum outer diameter | Nominal weight |
| No.×mm² | mm | mm | mm | mm | mm | kg/km |
| 7G1.5 | 0.8 | 1 | 1.6 | 14 | 17 | 360 |
