NSSHCGEOEU 0.6/1kV Coal Cutter Cable Rubber Cable

NSSHCGEOEU 0.6/1kV Coal Cutter Cable Rubber Cable

Quantity:
Availability:





Inquire Add to Basket

Model:
NSSHCGEOEU
Brand:
REPS

NSSHCGEOEU Mining Cable Submersible Cable Rubber Cable Coal Cutter Cable

Product Description

Technical Data

Dimensions

Product Description

These cables are used for the connection of mobile machines under extremely high mechanical loads, predominantly in mining situations, e.g. for coal-cutting machines, suitable for extreme bending loads under low tensile stress.

Technical Data

Standards

VDE 0250 Part 812

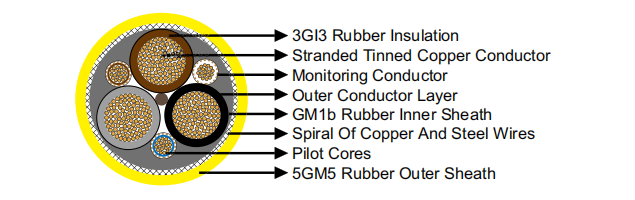

Construction

微信图片_20251022133602

Conductors: Flexible stranded tinned copper conductor.

Insulation: Heat resistant 3GI3 rubber based on EPR.

Outer Conductor Layer: Easy strippable outer conductive layer.

Pilot Cores: Copper strand and steel braid conductor capable of expansion and compression with EPR rubber insulation.

Monitoring Cores: Spiral of tinned copper wires above the pilot cores, covered with a semiconductive tape.

Inner Sheath: Rubber type GM1b.

Armour/Earth Conductor: Concentric earth conductor as spiral of copper and steel wires, fibreglas tape, embedded in the outer sheath which prevents sheath exchanging.

Outer Sheath: Rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant.

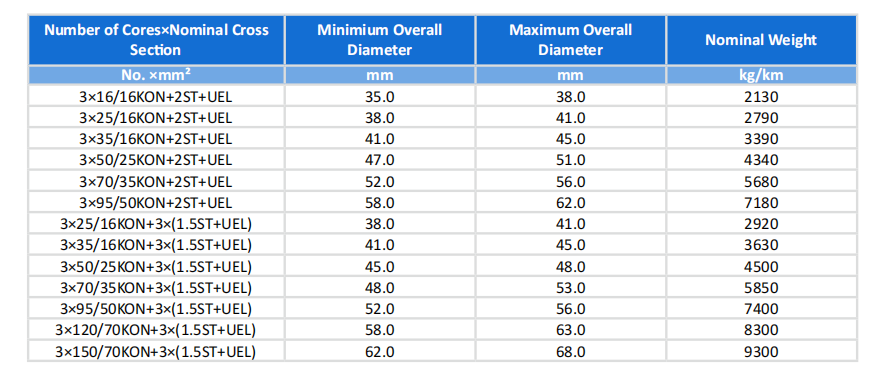

Dimensions

微信图片_202510221336021
