NSSHOEU/3E + ST 0.6/1kV Heavy Duty Flexible Cable Mining Cable

(N)SSHOEU 0.6/1kV Heavy Duty Cable Flexible Cable Rubber Cable Mining Cable

Quantity:
Availability:





Inquire Add to Basket

Model:
NSSHOEU/3E + ST
Brand:
REPS

NSSHOEU/3E + ST Heavy Duty Cable Flexible Cable Rubber Cable Mining Cable

Product Description

Contruction

Dimensions and Weight

Applications

These cables are used for connection of mobile equipment and machines under very high mechanical loads in dry and damp areas, outdoors and in explosion hazard areas, particularly in mining and at quarries and building sites.

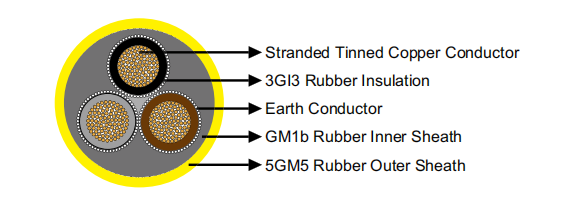

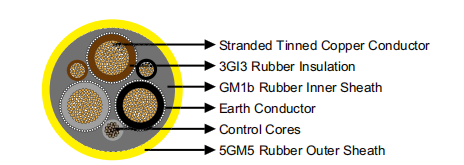

Contruction

Conductors: Flexible stranded copper conductor, class 5 according to DIN VDE 0295.

Insulation: Rubber type 3GI3.

Earth Conductor: Distributed as spiral of tinned copper wires over core insulating coverings (coding .../3E) or located concentrically between the inner and outer sheaths (coding ...kon).

Control Cores: Laid in the interstices, film wrap.

Inner Sheath: Rubber type GM1b.

Outer Sheath: Chlorinated rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant.

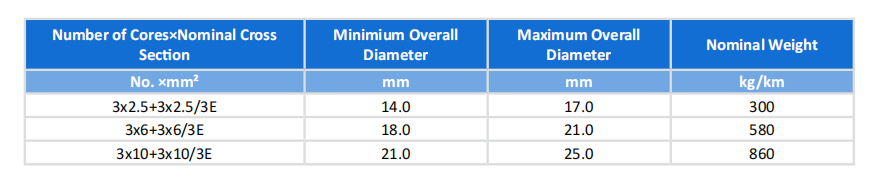

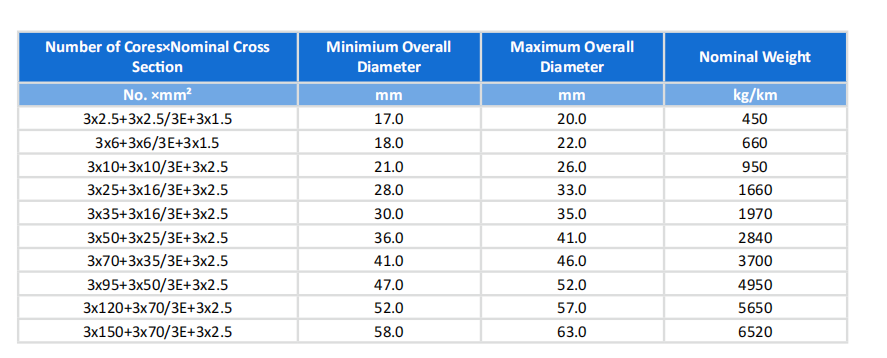

Dimensions and Weight
