NSSHCGEOEU 0.6/1kV Coal Cutter Cable (High Tensile Stress)

NSSHCGEOEU 0.6/1kV Coal Cutter Cable (High Tensile Stress)

Quantity:
Availability:





Inquire Add to Basket

Model:
NSSHCGEOEU
Brand:
REPS

NSSHCGEOEU Mining Cable Submersible Cable

Product Description

Technical Data

Dimensions

Product Description

These cables are used for the connection of mobile machines under extremely high mechanical loads, predominantly in mining situations, e.g. for coal-cutting machines, also can be operated via guide pulleys (cable cars) or used as a reeling cable (LHD), suitable for extreme bending loads, high tensile stress, and impact and crushing loads.

Technical Data

Standards

VDE 0250 Part 812

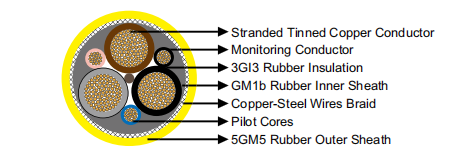

Construction

Conductors: Flexible stranded tinned copper conductor.

Insulation: Heat resistant 3GI3 rubber based on EPR.

Outer Conductor Layer: Easy strippable outer conductive layer.

Pilot Cores: Copper and steel conductor capable of expansion and compression with 3GI3 EPR rubber insulation. Monitoring Conductor: Copper and steel conductor capable of expansion and compression covert with semi conductive rubber compound.

Inner Sheath: Rubber type GM1b.

Armour/Earth Conductor: Concentric earth conductor as tensile-stress-resistant braided armour of combined copper-steel wires.

Outer Sheath: Rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant.

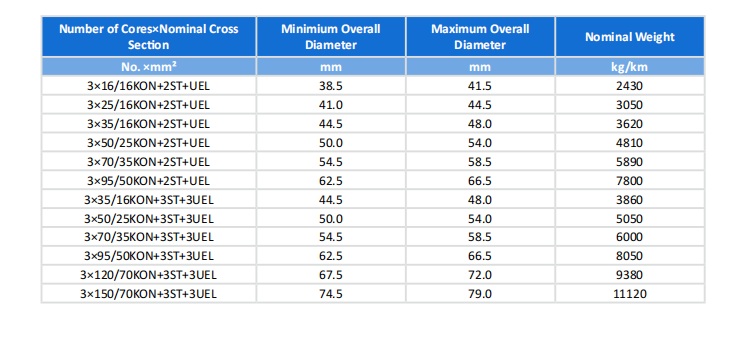

Dimensions

微信图片_20251022110615
