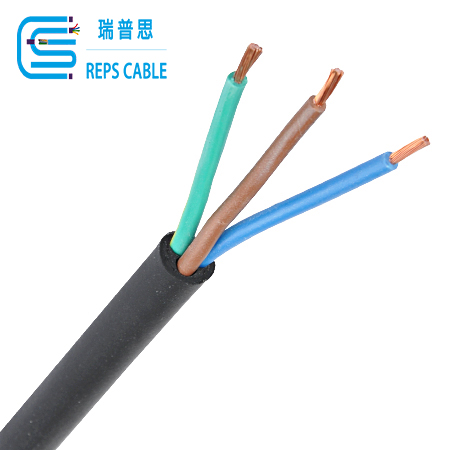

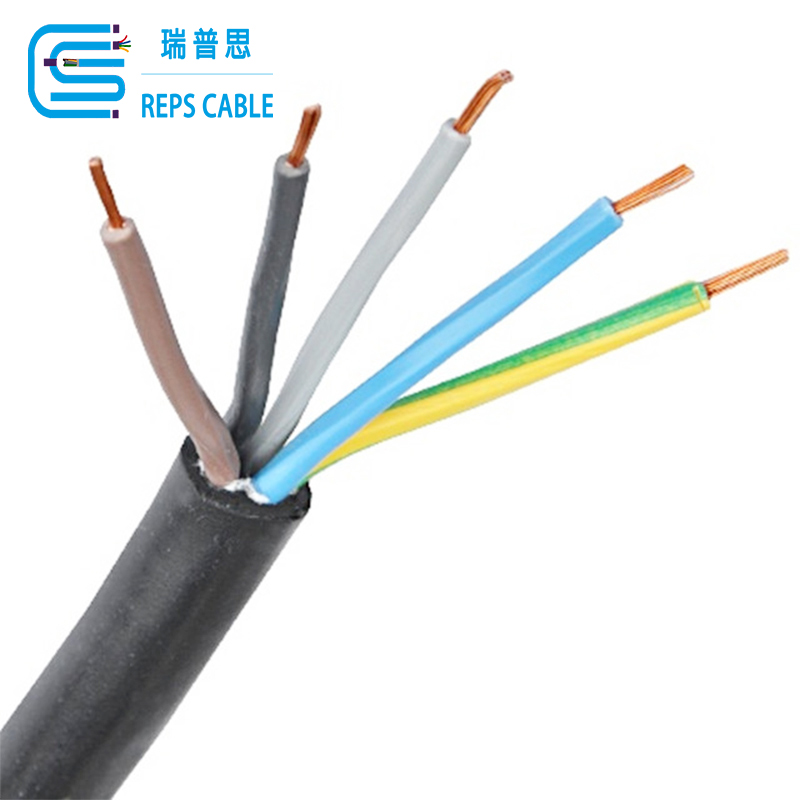

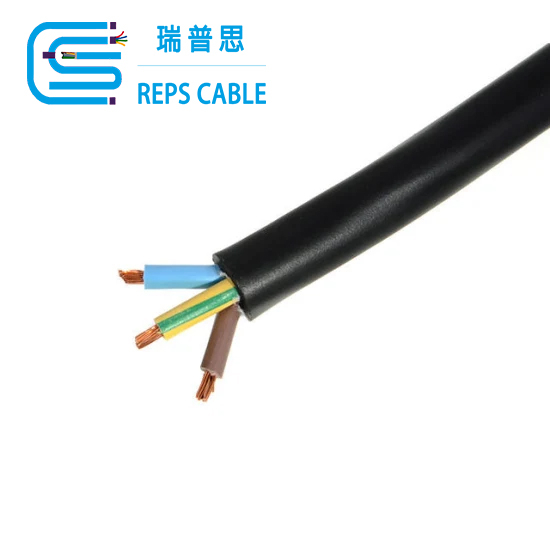

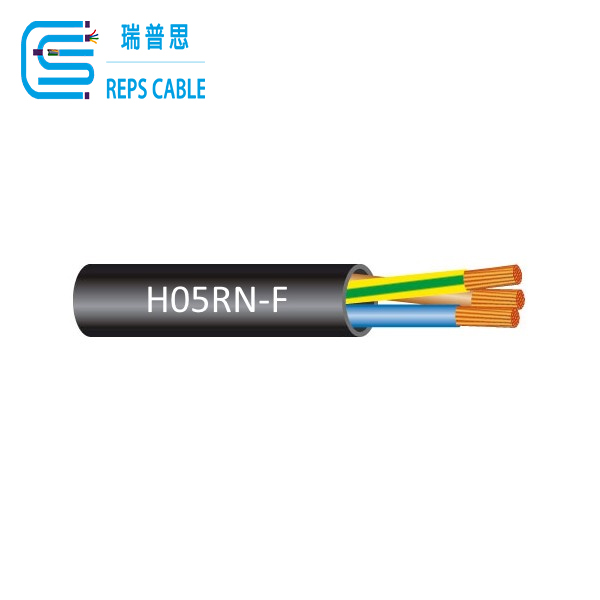

H05RN‑F Rubber Flexible Cable, 300/500V Neoprene Rubber Sheath Cable, Portable Power Cord for Household Appliance

H05RN‑F Rubber Flexible Cable, 300/500V Neoprene Rubber Sheath Cable, Portable Power Cord for Household Appliance

Quantity:
Availability:





Inquire Add to Basket

Model:
H05RN-F
Brand:
REPS

H05RN‑F H05RN‑F cable 300/500V rubber cable Rubber Cable hand tool cable Appliance rubber power cord

Product Description

Main Features

Application

Specifications Table

Product Description

It is mainly used for electrical equipment under low mechanical stress, for dry, damp indoor or outdoor environments.

Commonly applied in households, offices for connections between electrical appliances under low mechanical tension and other locations with low risk of mechanical damage. It is also suitable for fixed installation within furniture, decorative materials, wall partitions and pre‑installed building components. Maximum operating voltage Uo/U 318/550 V for single‑phase or three‑phase systems; maximum operating voltage for DC systems. This cable features ozone resistance and grease resistance.

Main Features

✅ Meet European harmonized standard H05RN‑F

✅ Rated voltage: 300/500V

✅ EPR rubber insulation, CR neoprene rubber sheath

✅ VDE0295 Class 5 flexible bare / tinned copper conductor

✅ Good flexibility, abrasion and tear resistance

✅ Ozone‑resistant, weather‑resistant

✅ Black sheath, easy for wiring of portable devices

✅ Single‑core & multi‑core options, custom cross‑section

Application

‑ Hand‑held electric power tools

‑ Household portable electrical appliances

‑ Small portable industrial equipment

‑ Light‑duty mobile machinery

‑ Indoor and temporary outdoor power connection

Specifications Table

Item	Specification
Product Name	H05RN‑F Rubber Flexible Cable
Standard	European Harmonized Standard H05RN‑F
Conductor	Bare / Tinned Copper, VDE0295 Class 5
Insulation	EPR Rubber
Outer Sheath	CR Neoprene Rubber
Rated Voltage	300/500 V
Core Number	2‑5 cores, custom multi‑core
Cross‑section	0.75mm²‑2.5mm² customizable
Working Temperature	-25℃ ~ +60℃
Sheath Color	Black
MOQ	500M, sample 100M available
Warranty	5 years
