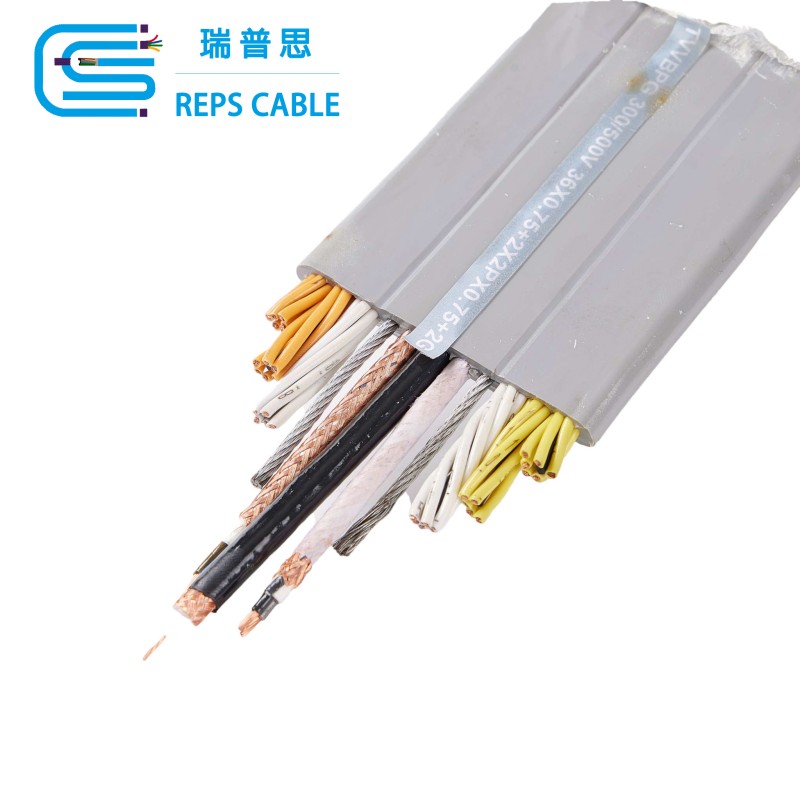

Crane flat cable, also known as festoon flat cable or travelling flat cable, is a specialized power & control cable built for continuously moving lifting equipment. Different from ordinary round cables, its flat ribbon structure eliminates twisting, tangling and kinking during reciprocating travel, making it the ideal power transmission solution for overhead cranes, gantry cranes, hoists and port material handling machinery.
Conductor: Fine stranded bare copper, compliant with VDE 0295 Class 5, excellent flexibility and anti-fatigue performance under frequent bending.
Insulation: Special PVC / Elastomer compound, stable electrical property.
Reinforcement: Optional galvanized steel wire embedded on both sides for extra tensile strength, suitable for long-distance suspension installation.
Outer Sheath: Modified PVC or rubber blend, resistant to abrasion, oil, moisture, UV and aging.
Core Options: 4, 8, 12, 16, 20, 24, 32 cores available, customized core cross-section upon request.
✅ Flat Structure Design: Saves installation space, runs smoothly inside festoon trolleys without winding. Small bending radius for repeated dynamic movement.
✅ Superior Tensile Performance: Optional built-in steel wire bears cable self-weight, prevents conductor breakage for long travel spans.
✅ Harsh Environment Resistance: Good oil resistance, weather resistance, wear resistance, works reliably in workshops, ports, metallurgy yards and outdoor sites.
✅ Long Service Life: Optimized flexible stranding reduces metal fatigue under continuous flexing, lowers downtime and maintenance cost.
✅ Wide Temperature Range: Stable operation from -15℃ up to +80℃, custom cold-resistant versions available for low-temperature regions.
Overhead travelling cranes, gantry cranes, electric hoists
Festoon cable trolley systems
Port container cranes, shipboard lifting equipment
Metallurgy plants, mining machinery, logistics conveyor systems
Workshop mobile trolley power and signal control
Rated Voltage: 300/500V, 450/750V Core cross section: 0.75mm², 1.0mm², 1.5mm², 2.5mm² and customized sizes Standards: IEC 60227-6, EN 50214 Color: Black / Orange sheath, core color coding or numbered printing available
We manufacture crane flat cables strictly following industrial standards. Each batch goes through electrical and mechanical tests before delivery. We support OEM & ODM, custom core quantity, cross-section, sheath material and printing marks. Our crane flat cable is widely exported to Europe, Southeast Asia, Middle East and Africa. Whether you need samples for testing or bulk orders for crane projects, please contact us for detailed datasheet and quotation.
