H05VVH6-F/ H07VVH6-F Elevator Flatform Flat Cable

H05VVH6‑F European Flat Festoon Cable 300/500V PVC insulation & sheath Cable

HAR harmonized flat festoon cable 300/500V, VDE‑0295 Class5 fine stranded copper, flame‑retardant PVC sheath, for crane, trolley and mobile machinery with single‑plane bending

Quantity:
Availability:





Inquire Add to Basket

Model:
H05VVH6-F/ H07VVH6-F
Brand:
REPS

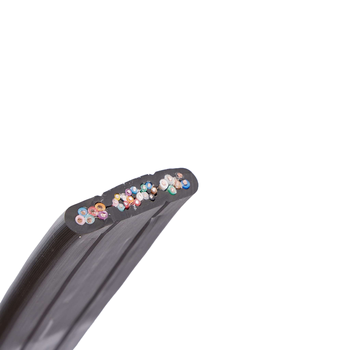

H05VVH6-F Flat Cable H07VVH6-F Flat Festoon Cable Felxible Cable 300/500v cable PVC insulation & sheath

Product Description

Technical Data

Dimensions

Product Description

H07VVH6-F is a harmonized, flexible, 450/750 volt, PVC flat festoon power and control cable. Mainly used as a trailing cable for crane installations, floor conveyor systems, elevator control cables, shelf control units and in supply lines for moving machine parts. The flat construction allows these cables to be stacked for applications where space is at a minimum and require smaller bending radius over that of round cables. Suitable for installations in dry and damp rooms. The outer PVC jacket is extensively resistant to oil, fat, acid and lye. The 300/500 volt versions are to European H05VVH6-F standards and are only available in 18 AWG (0.75mm2) and 17 AWG (1.0mm2).

Technical Data

Construction:

Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Cl-5
PVC core insulation
Color code VDE-0293-308 with ground
Cores laying parallel
PVC outer jacket - black (RAL 9005)
Extremely oil & chemical resistant

Technical:

Working voltage: 300/500 volts (H05)
Working voltage: 450/750 volts (H07)
Testing voltage: 3000 volts
Flexing bending radius: 10 x Ø
Flexing temp: -5º C to +70º C
Static temp: -30º C to +70º C
Flame retardant: IEC 60332.1
Insulation resistance: > 20 MΩ x km

Approvals:

H05VVH6-F to EN 50214
H07VVH6-F to HD 359 S2
VDE-0281 Part-403 & 404
CE Low Voltage Directive 2014/35/EU
RoHS compliant

Dimensions

Gauge	No. of Cores x Cross Section #x mm²	Nominal conductor diameter mm	Nominal insulation thickness mm	Nominal outer diameter mm	Copper figure kg/Km	Cable weight kg/km
H05VVH6-F
18(24/32)	4x 0.75	1.2	0.6	4.2x12.6	29	90
18(24/32)	8x 0.75	1.2	0.6	4.2x23.2	58	175
18(24/32)	12x 0.75	1.2	0.6	4.2x33.8	86	260
18(24/32)	18x 0.75	1.2	0.6	4.2x50.2	130	380
18(24/32)	24x 0.75	1.2	0.6	4.2x65.6	172	490
17(32/32)	4x1.00	1.4	0.7	4.4x13.4	38	105
17(32/32)	5×1.00	1.4	0.7	4.4x15.5	48	120
17(32/32)	8x1.00	1.4	0.7	4.4x24.8	77	205
17(32/32)	12x 1.00	1.4	0.7	4.4x36.2	115	300
17(32/32)	18x 1.00	1.4	0.7	4.4x 53.8	208	450
17(32/32)	24x 1.00	1.4	0.7	4.4x 70.4	230	590
H07VVH6-F
16(30/30)	4 x1.5	1.5	0.8	5.1x14.8	130	58
16(30/30)	5x1.5	1.5	0.8	5.1x 17.7	158	72
16(30/30)	7 x1.5	1.5	0.8	5.1x25.2	223	101
16(30/30)	8x1.5	1.5	0.8	5.1x27.3	245	115
16(30/30)	10x1.5	1.5	0.8	5.1x 33.9	304	144
16(30/30)	12 x1.5	1.5	0.8	5.1x40.5	365	173
16(30/30)	18x1.5	1.5	0.8	6.1x61.4	628	259
16(30/30)	24 x1.5	1.5	0.8	5.1x 83.0	820	346
14(30/50)	4 x2.5	1.9	0.8	5.8x 18.1	192	96
14(30/50)	5x2.5	1.9	0.8	5.8x21.6	248	120
14(30/50)	7 x2.5	1.9	0.8	5.8x31.7	336	168
14(30/50)	8x2.5	1.9	0.8	5.8x33.7	368	192
14(30/50)	10x2.5	1.9	0.8	5.8x42.6	515	240
14(30/50)	12 x2.5	1.9	0.8	5.8x49.5	545	288
14(30/50)	24 x2.5	1.9	0.8	5.8x 102.0	1220	480
12(56/28)	4 x4	2.5	0.8	6.7x20.1	154	271
12(56/28)	5 x4	2.5	0.8	6.9x 26.0	192	280
12(56/28)	7x4	2.5	0.8	6.7x35.5	269	475
10(84/28)	4 x6	3.0	0.8	7.2x22.4	230	359
10(84/28)	5 x6	3.0	0.8	7.4x31.0	288	530
10(84/28)	7 x6	3.0	0.8	7.4x43.0	403	750
8(80/26)	4x10	4.0	1	9.2x28.7	384	707
8(80/26)	5x10	4.0	1	11.0x37.5	480	1120
6(128/26)	4 x16	5.6	1	11.1x 35.1	614	838
6(128/26)	5x16	5.6	1	11.2x43.5	768	1180
