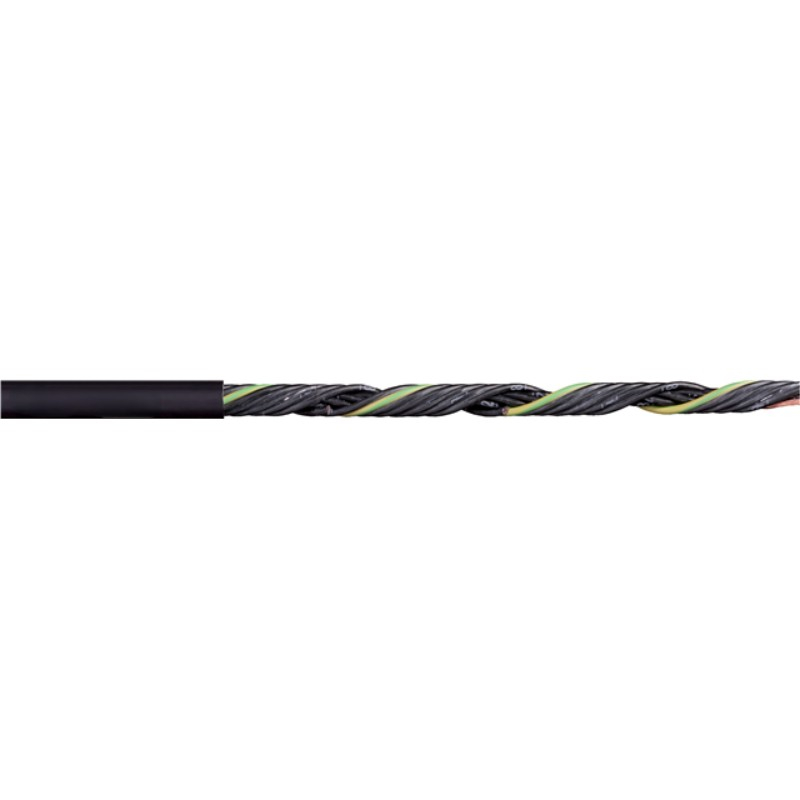

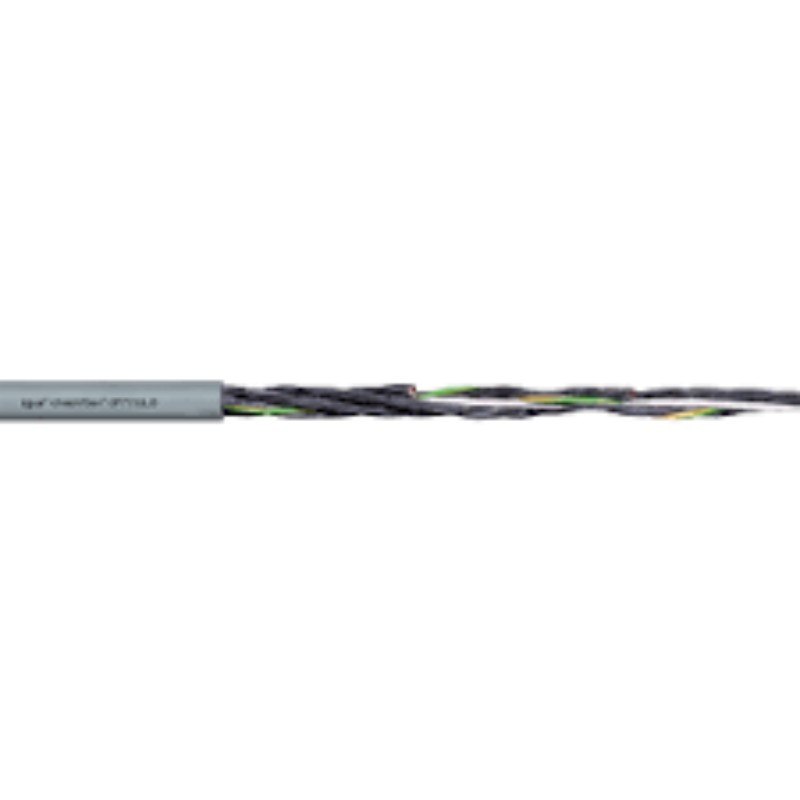

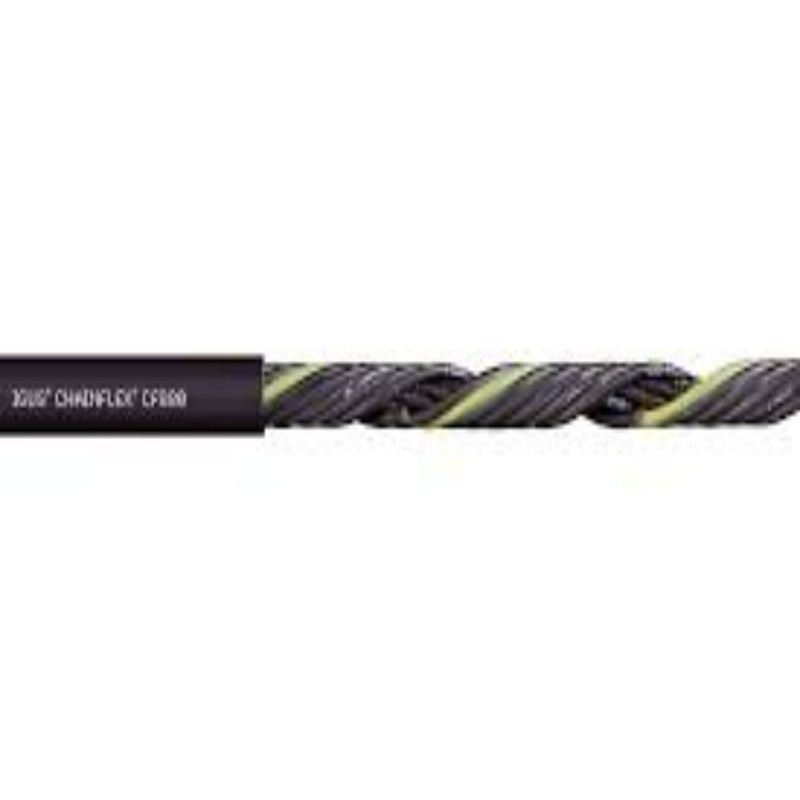

CF880 (igus 880 cable) Flexible PVC Control Cable For Energy Chain

CF880 (igus 880 cable) flexible control cable for e‑chain applications. PVC outer jacket, TPE core insulation, silicone‑free & flame‑retardant. Designed for continuous flexing indoors. Ideal for wood / stone processing, packaging machinery, unsupported travel up to 10m, up to 5 million double‑stroke cycles.

Quantity:
Availability:





Inquire Add to Basket

Model:
Igus 880
Brand:
REPS

CF880 igus 880 cable chainflex cable energy‑chain cable flexible control cable PVC drag‑chain cable Control Cable

Product Description

Parameter Table

Features

Specially developed for continuous flexing in energy‑chain systems. TPE core insulation plus low‑adhesion PVC outer jacket to reduce friction inside cable chain.
Silicone‑free compound: Will not interfere with painting / coating processes for painting production lines.
Flame retardant to IEC60332‑1‑2. ⚠️ NOT oil‑resistant, keep away from oil & cutting fluid.
Optimized short‑pitch stranding for improved flexing life, up to 5 million double‑stroke cycles.
Max unsupported travel length up to 10 meters for medium‑travel e‑chain.

Typical Applications
Wood‑working machinery, stone‑processing equipment, packaging machines, automation handling systems, adjusting actuators, indoor automation control & power supply for drag‑chain.

Item	Value
Model	CF880 (igus 880 cable)
Class	3.1.1.1
Rated Voltage	300/500V；UL 300V
Test Voltage	2000V (DIN EN 50395)
Conductor	Bare stranded copper,DIN EN 60228
Core Insulation	High‑mechanical TPE compound
Outer Jacket	Low‑adhesion PVC, Jet black RAL9005
Properties	Flame‑retardant IEC60332‑1‑2, Silicone‑free, Not oil‑resistant
Min.Bending Radius(E‑chain)	12.5 × cable OD
Min.Bending Radius(free flexing)	10 × cable OD
Min.Bending Radius(static)	7 × cable OD
Temp.range(dynamic in chain)	+5℃ ~ +70℃
Temp.range(static installation)	‑15℃ ~ +70℃
Max.unsupported travel	10 m
Guaranteed cycles	Up to 5 million double‑strokes
Core marking	Black cores with white numbers, green‑yellow PE core
Application Environment	Indoor dry area, no oil exposure
Available cross‑sections	0.34mm²,0.5mm²,0.75mm²,1.0mm² multi‑core
